Easy Quarter Turn Operation Brass Boiler Drain Valve from China manufacturer

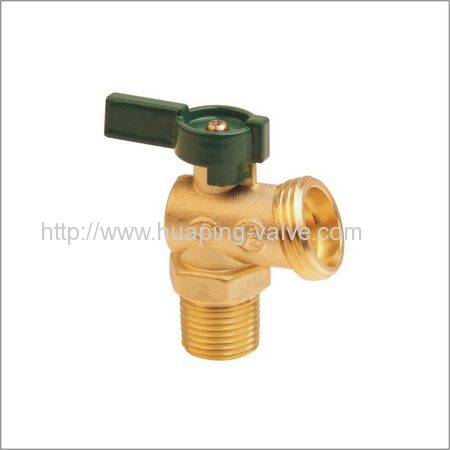

Easy Quarter Turn Operation Brass Boiler Drain Valve

Payment Terms:	T/T
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 1061

Packing: According to customer's req...

Standard or Nonstandard: Standard

Structure: Ball

Media: Water

Maximun working pressure: 125PSI

Means of Transport: Ocean

Delivery Date: 45days

Pressure: Medium Pressure

Temperature of Media: Normal Temperature

Brand Name: Huaping

• Meet NSF approved low lead standards
• Easy Quarter Turn Operation
• Maximun 125PSI working pressure

Product Name:NSF approved low lead standards Quarter-Turn Hose End Valves

Model No.: 1061
•Brass Boiler Drain Valve, Cup or MIP Threads to Hose

Features:

· Meet NSF approved low lead standards

· Easy Quarter Turn Operation

· Maximun 125PSI working pressure

· Chrome Plated Brass Ball

· Teflon Seats

· 3/4" Hose Thread Outlet

· Pipe Thread Comply with ANSI B1.20.1

· Hose Thread Comply with ANSI B1.20.7

· Solder Ends Comply with ANSI B16.18

Material List

Item Part Material

1 Body Brass

2 End Cap Brass

3 Ball Seat PTFE

4 Ball Brass

5 Stem Brass

6 O-Ring NBR

7 Bolt Nickel plating steel

8 Handle Aluminum

9 Nameplate Aluminum

Dimensions:

1061
Size	A	B	C
1/2"	2.496	1.134	1.307
3/4"	2.555	1.134	1.307
