Aluminum Nameplate and Handle Quarter Turn Hose End Valves from China manufacturer

Aluminum Nameplate and Handle Quarter Turn Hose End Valves

Payment Terms:	T/T
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 1069

Packing: According to customer's req...

Standard or Nonstandard: Standard

Structure: Ball

Media: Water

Maximun working pressure: 125PSI

Means of Transport: Ocean

Delivery Date: 45days

Pressure: Medium Pressure

Temperature of Media: Normal Temperature

Brand Name: Huaping

• 3/4" Hose Thread Outlet
• Pipe Thread Comply with ANSI B1.20.1
• Hose Thread Comply with ANSI B1.20.7

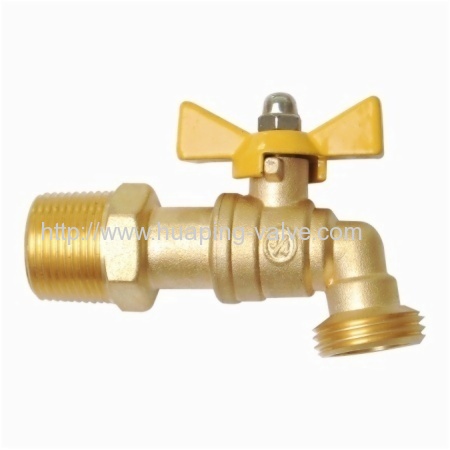

Product Name:Quarter-Turn Hose End Valve Male Thread to Hose

Model No.: 1069
Quarter-Turn Hose End Valve, No-Kink Hose Bibb, Cup or Male to Hose, Male Thread to Hose

Features:

· Meet NSF approved low lead standards

· Easy Quarter Turn Operation

· Maximun 125PSI working pressure

· Chrome Plated Brass Ball

· Teflon Seats

· 3/4" Hose Thread Outlet

· Pipe Thread Comply with ANSI B1.20.1

· Hose Thread Comply with ANSI B1.20.7

· Solder Ends Comply with ANSI B16.18

Material List

Item Part Material

1 Body Brass

2 End Cap Brass

3 Ball Seat PTFE

4 Ball Brass

5 Stem Brass

6 O-Ring NBR

7 Bolt Nickel plating steel

8 Handle Aluminum

9 Nameplate Aluminum

Dimensions:

Quarter-Turn Hose End Valve, No-Kink Hose Bibb, Cup or Male to Hose, Male Thread to Hose

1069
Size	A	B	C
1/2"	3.583	1.476	0.898
3/4"	3.701	1.476	0.898
